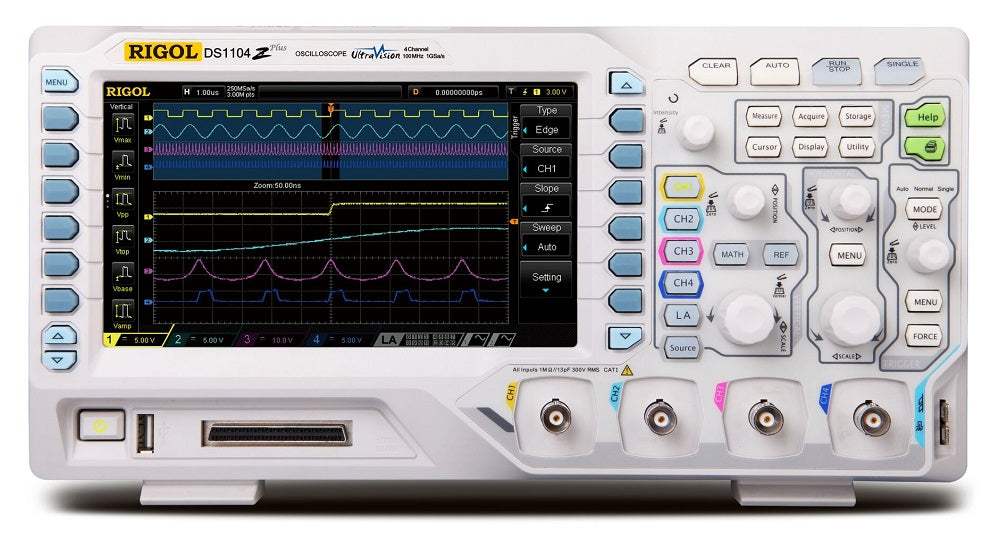

DS1104Z PLUS Rigol Digital Oscilloscope New

Features:

• 4 Channel
• 100 MHz
• 4 analog channels
• Includes port for logic analyzer for the MSO Upgrade Kit. Future purchase of the MSO Upgrade Kit turns this into a MSO1104Z-S.
• MSO field upgradable with MSO1000Z upgrade package
• Real-time sample rate up to 1 GSa/s
• Memory depth up to 12 Mpts (standard)/24 Mpts (optional)
• Up to 30,000 wfms/s waveform capture rate
• Up to 60,000 frames hardware real-time waveform recording and playback functions (optional)
• Innovative "UltraVision" technology
• Various trigger and bus decoding functions
• Low noise floor, vertical scale range: 1 mV/div to 10 V/div
• Various interfaces: USB Host&Device, LAN (LXI), AUX
• Compact size, light weight, easy to use
• 7 inch WVGA (800x480) TFT LCD, intensity graded color display
• Three-year warranty, excluding probes and accessories

Accessories:

• Power Cord conforming to the standard of the country
• USB Cable - CB-USBA-USBB-FF-150
• 4 Passive Probes (150 MHz) - PVP2150
• Quick Guide

The DS1104Z PLUS is a high-performance and economic digital oscilloscope designed for the designing, debugging and educational requirements of the mainstream digital oscilloscope market.
